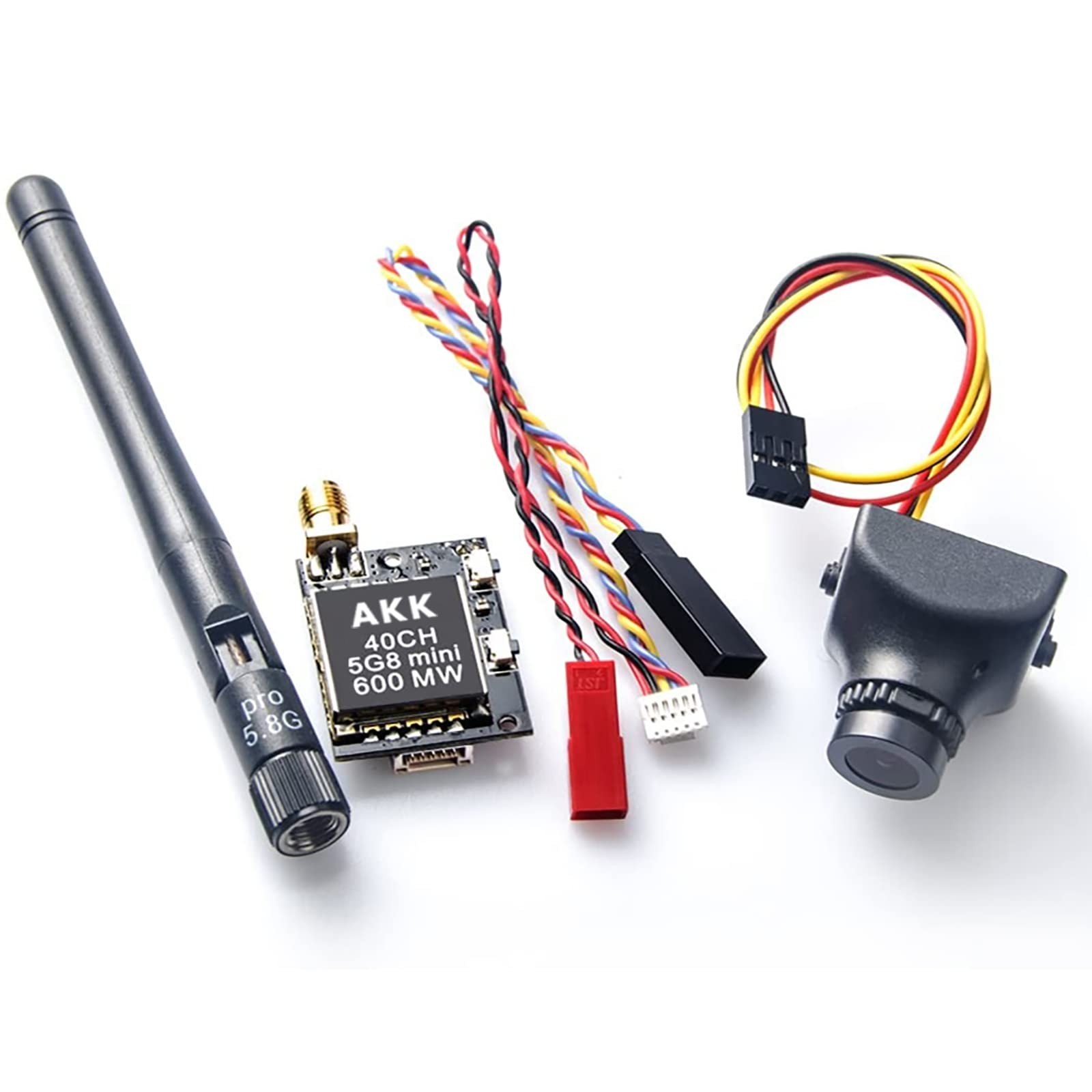

AKK KC04 5.8G 600mW FPV Transmitter 700TVL 2.8mm 120 Degree FPV Camera

Scanning System: NTSC
Image Sensor: 1/3’’ CMOS
Pixels: 1280(H) x 720(V)
Synchronization : internal
Minimum Illumination: 0.05LUX/F1.2
Horizontal Resolution: 800TVL
White Balance: automatic
Automatic gain: Auto
Back Light Compensation: Auto
Digital noise reduction: YES(2D)
Gamma Correction: 0.45
Electronic Shutte: PAL: 1/50~1/100000S ; NTSC: 1/60~1/100000S
S/N Ratio: more than or equal to 50dB
Video output: 1.0Vp-p/75Ω
Power Supply: DC5V 1000mA
Working current: 135+/-5mA
Working Temperature: -40℃ ~ +150 ℃

Specification of Transmitter:
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Transmitting distance > 3000m (open area)
Antenna connector: RP-SMA connector
Supply current: 280 mA
Operating Temperature: -10 +85℃
Video Band Width: 0-8.0 MHz
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm

Package includes:
1x 5.8G FPV transmitter
1x 800TVL Camera
1x 5.8G antenna
1x Connector and cable set
1x Manual
A RTF FPV System for beginners, Suitable for all quadcopters and drones
Small size and light weight, Signal System: NTSC
The transmitter has double push buttons for easy changing CH and FR
A RTF FPV System for beginners, Suitable for all quadcopters and drones
